Quality Assurance Inspection Points

Two plumbing rough-ins that look identical from the doorway can differ significantly in the placement of the shutoff valve. The intervals renovation journal mybrightleafhome uses are shorter than the manual says to ensure a remodel stays on track. A successful renovation depends on catching errors before the walls close up.

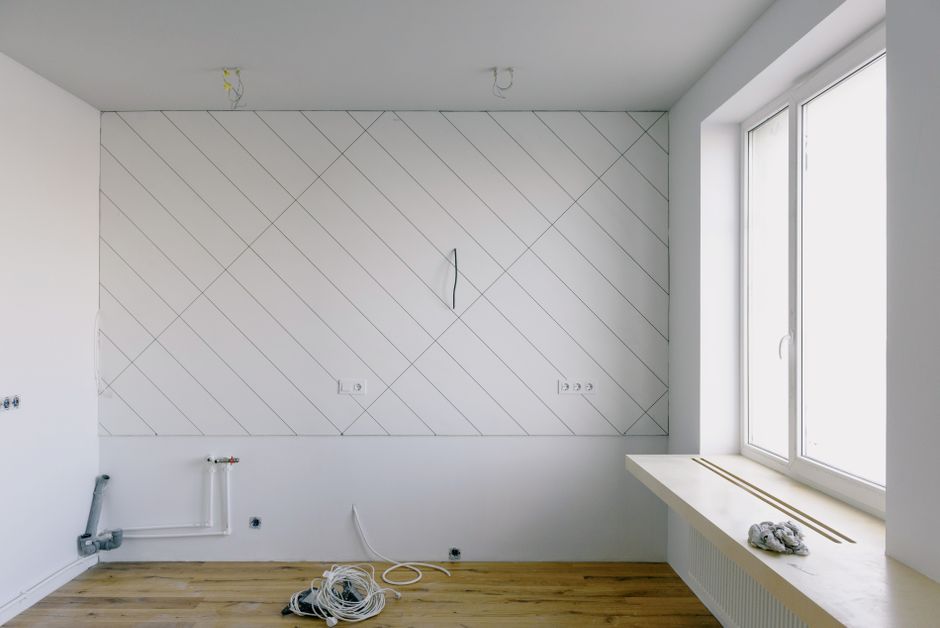

Plumbing Rough-In and Valve Placement

The positioning of the supply lines determines the eventual fit of a vanity or a tub. A valve must be set at the correct depth to account for the thickness of the finished wall. If a valve sits too deep, a faucet will not reach the connection. If a cartridge is seated improperly in the rough-in body, the hardware will fail during the trim phase. Checking the vertical height of these connections against the plan prevents a mismatch with the chosen sink or tub.

Shower Base and Pan Integrity

Waterproofing happens before any tile is laid. A shower pan must be checked for levelness across the entire slope to ensure drainage toward the center. For a curbless entry, the slope must be precise to prevent pooling near the threshold. The membrane must be bonded to the substrate without any gaps or wrinkles. A linear drain requires a specific pitch in the mortar bed to function. If the slope is off by even a fraction, water will migrate toward the bathroom floor instead of the drain.

Substrate and Backer Board Installation

The strength of a wall depends on the backer board attachment. Cement board must be fastened with the correct screw spacing to prevent movement. A loose sheet will eventually crack the grout lines. Thinset application must be consistent to avoid hollow spots behind the tile. Once the substrate is fixed, the waterproofing layer goes over it to create a continuous seal. This layer is the only thing standing between a leak and a ruined subfloor.

Floor and Wall Tile Prep

A layout check prevents small, awkward slivers of tile at the corners. The floor must be flat to prevent lippage. When installing porcelain tile, the thinset must be spread with a notched trowel to ensure full coverage. Any voids under the tile will lead to cracking under heavy loads. After the tile is set, the grout must be applied to fill the joints completely. The final seal involves a bead of caulk at all change-of-plane intersections to allow for natural building movement.

Countertop and Sink Alignment

The cutout for an undermount sink must be measured twice. An error in the template ruins the stone. The sink must sit securely against the countertop to prevent shifting. If the faucet holes are misaligned with the plumbing below, the connections will be under tension. Checking these measurements before the stone is cut prevents a costly replacement.
